Density meter EDM 4000/5000

PDF data sheet

• Precise and fast measurement
• Integrated reference oscillator
• High-precision temperature measurement
• Automatic viscosity correction
• Automatic detection of gas bubbles

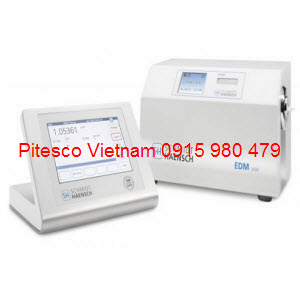

Density meter EDM 4000/5000

The SCHMIDT + HAENSCH EDM Density Meter is designed for continuous density measurement in a broad range of application.

EDM is a rugged, sealed single-piece system with the flexibility to handle nearly any customer request for such instrumentation.

It gets manufactured with the worldwide known SCHMIDT + HAENSCH quality in Germany where all parts are under extreme stress tested and prepared for a long life and durability operations.

Multiple reference alcohol tables, precision density resolution, USB and Ethernet, Serial output and a wide selectable accessories that will solve the most challenging application. Optional moisture and Air pressure sensor and most accurate temperature control programs provide the extended usage also in difficult environment conditions. An intuitive user friendly Software and the large Color-TFT Touchscreen interface reduces the setup times for protocols and adds powerful trouble-shooting capabilities. Common accessories and robust exchangeable fittings reduce installation expense and saves times to evaluate 3rd party products.

The EDM can be combined with other SCHMIDT + HAENSCH instruments, such Refractometers, which allow this instrument to be used also for complex analyses. This unique modular capability combined with advanced interior design sets a new standard for density measurement instruments.

The SCHMIDT + HAENSCH EDM insures for you a consistent manufacturing process and allows tighter tolerances on the results, reducing costs and increase the quality approvals. For performance and quality choose the SCHMIDT + HAENSCH EDM.

Measuring range

Density	0 - 3 g/cm³
Temperature	0 - 95 °C (regulierendes Peltier-Thermoelement
Pressure	0 - 10 Bar (0 - 145 psi)

Density

Resolution	EDM 4000: 0,0001 g/cm³ EDM 5000: 0,00001 g/cm³
Precision	EDM 4000: ± 0,0005 g/cm³ EDM 5000: ± 0,00005 g/cm³
Repeatability	EDM 4000: ± 0,0001 g/cm³ EDM 5000: ± 0,00001 g/cm³

Temperature

Resolution	0,001 °C
Precision	± 0,03 °C
Repeatability	± 0,01 °C

Additional information

Measuring time	< 30 sec.
Sample volume	approx. 1 ml
Filling	By injection
Bubble detection	Automatic (combined visual – electronic)
Viscosity correction	EDM 4000: no EDM 5000: automatic
Display	3“ colour TFT touch screen
Interfaces	Serial RS232, Ethernet
L-Display electronic unit	optional
